VACUUM PUMP
|

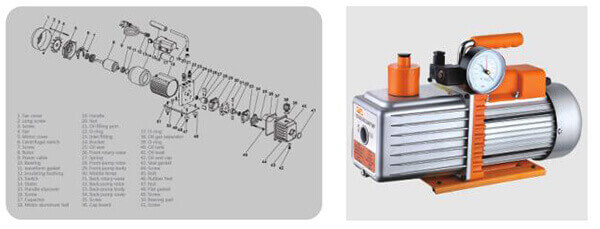

C Series Double Stage Vacuum Pump Product Categories: VACUUM PUMP Main Features: by one same shaft, higher vacuum degree. PM material for back stage pump, higher wear resistance. Superiority design on oil entering system, oil and gas separated thoroughly, no oil mist.  |
Description
V：with vacuum gauge and valve
Model
| 2ZRU-0.5C ZRU-0.5CV | 2ZRU-1C 2ZRU-1CV | 2ZRU-1.5C 2ZRU-1.5CV | 2ZRU-2C 2ZRU-2CV | 2ZRU-3C 2ZRU-3CV | 2ZRU-4C 2ZRU-4CV | |
|---|---|---|---|---|---|---|---|
Flow Rate(cfm) | 220V~50Hz | 1CFM | 2CFM | 3.2CFM | 4.2CFM | 6.4CFM | 8.5CFM |
30L/min | 60L/min | 90L/min | 120L/min | 180L/min | 240L/min | ||
110V~/60Hz | 1.2CFM | 2.5CFM | 3.8CFM | 5CFM | 7.6CFM | 10CFM | |
36L/min | 72L/min | 108L/min | 144L/min | 216L/min | 288L/min | ||
Ultimate Vacuum | Partial Pressure | 2x10⁻¹Pa | 2x10⁻¹Pa | 2x10⁻¹Pa | 2x10⁻¹Pa | 2x10⁻¹Pa | 2x10⁻¹Pa |
Total Pressure | 15Microns | 15Microns | 15Microns | 15Microns | 15Microns | 15Microns | |
Power(HP) | 1/4 | 1/3 | 1/3 | 1/2 | 3/4 | 3/4 | |
Rotating Speed(r/ming) | 220V~/50Hz | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 |
110V~/60Hz | 1720 | 1720 | 1720 | 1720 | 1720 | 1720 | |
Inlet Port | 1/4SAE | 1/4SAE | 1/4SAE | 1/4SAE | 1/4SAE | 1/4SAE | |
Oil Capacity(ml) | 200 | 250 | 300 | 280 | 600 | 650 | |
Dimensions(mm) | 315x125x240mm | 315x125x240mm | 315x125x240mm | 315x125x240mm | 315x125x240mm | 315x125x240mm | |
Weight(kg) | 7kg | 9kg | 10kg | 10kg | 16kg | 17kg | |
|
